Max Power (Pmax):
Make: First Solar
Model: FS-260
Max Volts (Vmp): 61.7 V
Max Amps (Imp): 1.17A
Dimensions (mm): 1200mm x 600mm x 7mm
Condition: New and unused
Cable & Connectors: MC3
Mono or Poly: - Thin Film
Age: New

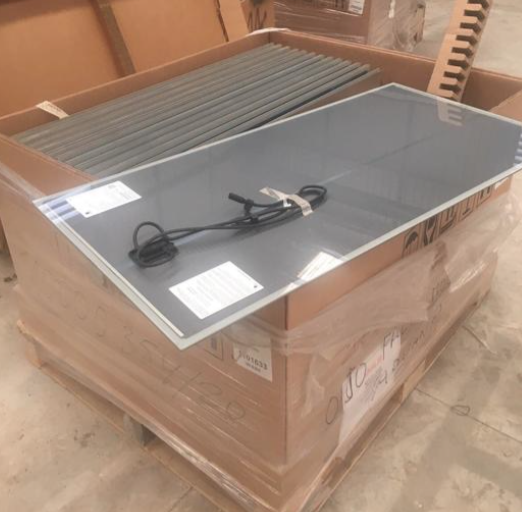

Frameless thin film panels with free clamps.
First Solar Series 2 PV Modules are manufactured in state-of-the-art facilities using a breakthrough process that rapidly deposits thin films of compound semiconductor material on glass. The modules have been designed to have a long operating life and high energy yield
• High energy production in real world conditions. Produces high energy output across a wide range of climatic conditions with excellent temperature response coefficient
• Frameless laminate is robust, cost-effective and recyclable, and does not require module grounding
• Size and weight that enables efficient handling and installation.
• Tested by leading international institutes and certified for reliability and safety
• Easy, quick-connect wiring for fast interconnection.
• Internationally recognized product certifications.
• Five-year limited material/workmanship and twenty five year limited power output warranties as outlined in “First Solar FS Series Module Warranty Terms & Conditions”.
FS Series 2 PV modules are tested and certified per IEC 61646 for a maximum system voltage of 1000V.
To maximize performance, modules should be located in an area that receives direct sunlight from mid-morning to mid-afternoon (typically 9:00 a.m. to 3:00 p.m.). Avoid locating the modules where shadows may be caused by buildings, trees, etc.
First Solar FS Series 2 PV Modules are preconfigured with industry standard connectors that are “touch proof” with all live parts protected against accidental contact and protected against polarity reversal. The connectors are UV and weather resistant from –40°C to +90°C, and rated for 1000VDC (600VDC UL) and 20A
First Solar FS Series 2 PV Modules have no exposed conductive surfaces and do not require equipment grounding.
These smaller wattage panels with a super slim profile at only 7mm are very popular with the boating and camper van folk, equally they can be used for domestic use on your home and will look very smart indeed.
