Hoymiles HiBattery 4020X all-in-one solar & battery storage system - (Plug & Play) - Free delivery
£1,550.00
The Hoymiles HiBattery 4020X is a compact, all-in-one home solar battery that stores the electricity your panels generate during the day so you can use it in the evening and overnight. It combines a 4.02kWh LFP battery, solar input and smart energy management in a single wall-mounted unit — and when your needs grow, you simply add another module.
Start at 4.02kWh. Expand to 16.08kWh. No replacing what you've already bought.
Cut what you buy from the grid. Solar generated at midday is stored rather than exported, then used when the sun goes down — the hours when most households use the most electricity.
Make time-of-use tariffs work harder. The battery can charge when electricity is cheapest and discharge during peak-rate periods, so you're buying fewer units at the expensive end of the day.
Retrofit it to solar you already have. You don't need a new system. The 4020X accepts up to 4,000W of PV input and can be added to an existing setup.
Grow the system when you're ready. Add modules as your usage changes — an EV, a heat pump, a home office — up to a total of 16.08kWh.
See exactly what it's doing. Monitor generation, storage and consumption through the Hoymiles app over Wi-Fi or Bluetooth.

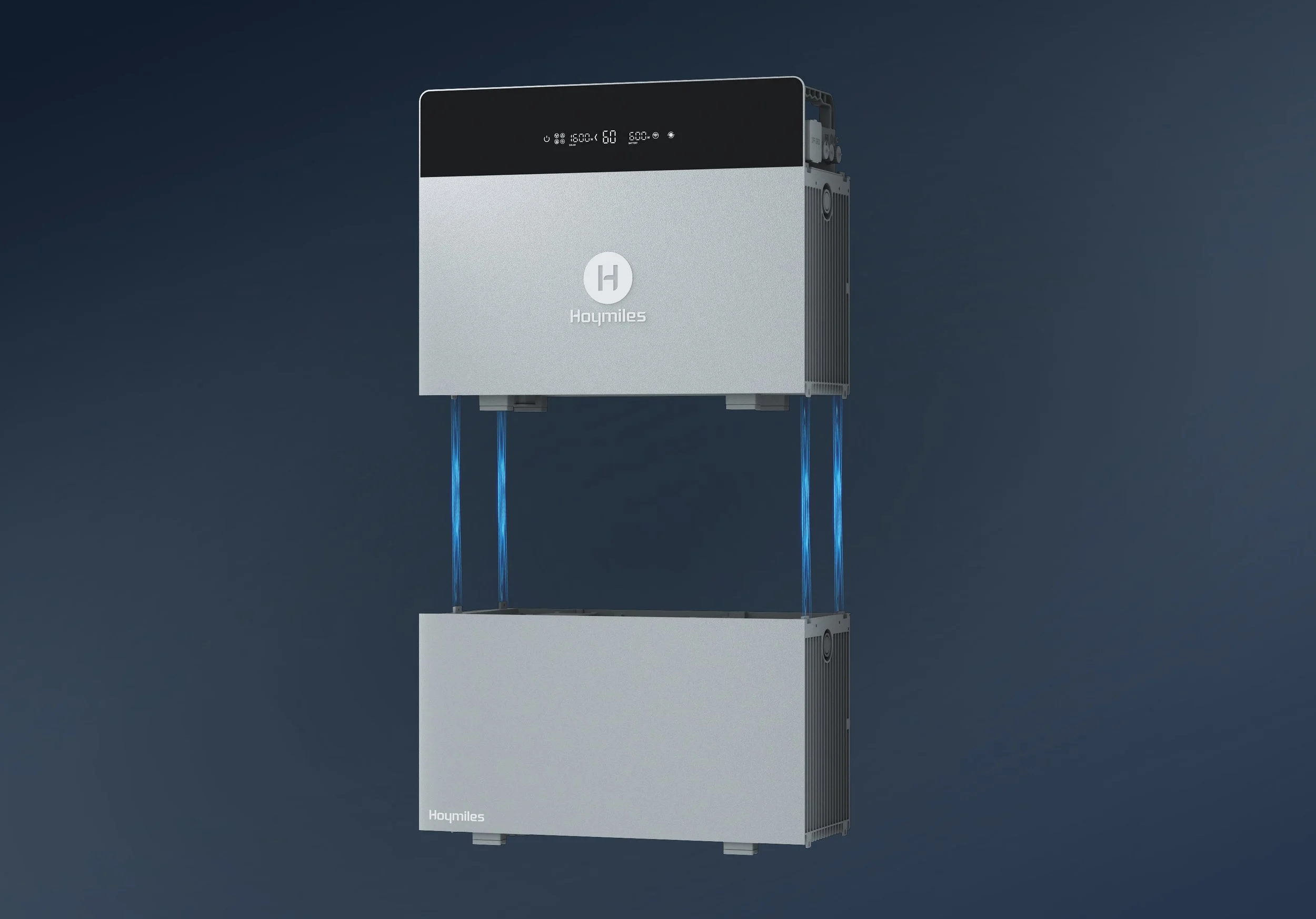

Modularity is the core of the HiBattery platform. Begin with the compact 4.02kWh HiBattery 4020X and add further battery units as your energy needs increase, scaling the system to 16.08kWh in total.
Each battery contains its own bidirectional DC/DC module. That means the system automatically manages and balances differences in state of charge when new capacity is added — so a module fitted in year three works alongside your original unit without dragging it down.
The HiBattery 4020X uses lithium iron phosphate (LFP) cells, the chemistry chosen across the industry for its thermal stability. On top of that, an intelligent battery management system provides multiple layers of protection:
Internal fire-extinguishing system, activated automatically
PV input over-temperature protection
Pressure relief valve
Stack connector temperature monitoring
Intelligent cell balancing
Low-temperature battery heating
Independent overcharge and over-discharge protection
With an IP66 rating against dust and water ingress and an operating range of -20°C to 55°C, the unit is built for real British weather rather than laboratory conditions.
Hoymiles HiBattery 4020X
Battery capacity 4.02 kWh
Maximum system capacity 16.08 kWh
Maximum output power 2.5 kVA
Maximum PV input 4 × 1,000 W
Battery chemistry LFP (lithium iron phosphate)
Cycle life8,000 cycles
Energy management Hoymiles AI-EMS
Protection rating IP66
Connectivity Wi-Fi 2.4 GHz / Bluetooth
Operating temperature -20°C to +55°C
Dimensions 520 × 199 × 384 mm
Warranty10 years
Whether you're retrofitting storage to an existing solar array or designing a solar-plus-battery system from scratch, the HiBattery 4020X is a straightforward place to start — compact enough for a utility room or garage wall, and modular enough to scale when your household's demands change.
Not sure how much storage you need, or which panels and accessories pair best with it? Get in touch with our team and we'll help you specify the right system for your home.
How much is 4.02kWh in practical terms? For a typical household, roughly a third to a half of a day's electricity use — enough to cover the evening peak for most homes, and the reason many customers start here and add a second module later.
Can I add the HiBattery 4020X to solar panels I already have? Yes. It accepts up to 4,000W of PV input and is designed for retrofit as well as new installations.
How long will the battery last? The LFP cells are rated for 8,000 cycles and the unit carries a 10-year warranty.
Can I install it outside? The IP66 rating covers dust and water ingress, and the battery operates from -20°C to 55°C with low-temperature cell heating built in.
How many batteries can I link together? Up to four modules, giving a maximum system capacity of 16.08kWh.
